Selfs - Current--compensated Noise Suppression Chokes - FAMILLE 42U13V4
| LINEAR VERSION | Voltage 250 Vac Current 0.3 to 2 A |
These chokes are fitted with two high-permeability U11 cores (ferrite). They are mainly used in devices
equipped with switched-mode power supplies, and in filters designed to prevent both the spread of
parasitic noise within the device, and the effects of line noise on the device itself.
 |

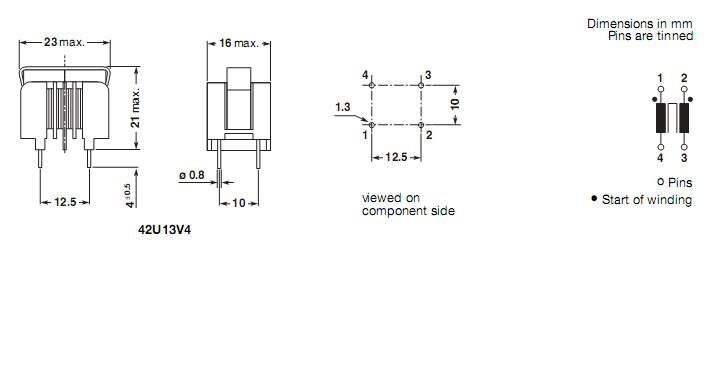

TYPES| Types | Code | Rated curent A | Rated inductance mH | DC resistance per (typical) Ω | Code | Rated current A | Rated inductance mH | DC resistance per (typical) Ω |
| 42U13V4 | 42U13V4 0301 | 0,3 | 47 | 4,5 | 42U13V4 1301 | 1,3 | 2,7 | 0,25 |
| 42U13V4 0401 | 0,4 | 27 | 2,7 | 42U13V4 1501 | 1,5 | 2,2 | 0,21 | |
| 42U13V4 0501 | 0,5 | 18 | 1,6 | 42U13V4 1701 | 1,7 | 1,7 | 0,16 | |
| 42U13V4 0701 | 0,7 | 10 | 0,95 | 42U13V4 2001 | 2 | 1,2 | 0,12 | |
| 42U13V4 1001 | 1 | 4,7 | 0,44 |
Technical Data
Rated current: referred to 250 V-50 Hz and +60°C ambient temperature
Rated inductance: at +20°C and 1 kHz, 1 Vac
Inductance tolerance: +50 -30%
Inductance loss: < 10% at DC initial loading with IR
Testing voltage: 1500 V -50 Hz, 2 sec, winding to winding
Climatic category: DIN GKC (-40 to +125°C; humidity cat. C)
DC resistance: at +20°C
Derating operating current: at +120°C ambient temperature I=0
Overtemperature of windings: < 55°C
Max. permissible temperature of windings: 115 °C
Approx. weight: 13 g
Pending Approval: VDE
The chokes are designed and tested in accordance with EN 138100; EN 60938-1
The coil formers are of flame-retardant plastic material in accordance with UL 94V-0
